Z-Wave Controller Transport Framework. More...

Collaboration diagram for Z-Wave Controller Transport Framework:

Modules
	Z-Wave Controller Transport internals.
	Internal Z-Wave Controller transport related functions.

Classes
struct	zwave_controller_transport
	Hold information about a transport plugin. More...

Macros
#define	NUMBER_OF_TRANSPORTS 7

Typedefs
typedef struct zwave_controller_transport	zwave_controller_transport_t
	Hold information about a transport plugin. More...

Functions
sl_status_t	zwave_controller_transport_init ()
	Initialize the Z-Wave Controller transport component. More...

sl_status_t	zwave_controller_transport_register (const zwave_controller_transport_t *transport)
	Must be called to register a transport. More...

zwave_cc_version_t	zwave_controller_transport_is_encapsulation_cc (zwave_command_class_t command_class)
	check if a command class is registered as an encapsulation cc in Z-Wave controller transport framework. If it does, the module will retrun the version of the encapsulation command class. More...

Detailed Description

Z-Wave Controller Transport Framework.

The purpose of the Z-Wave Controller Transport Framework, is to have a simple API witch handles integration of all Z-Wave transport command classes. Each encapsulation command class will register its command handlers and send data function to the controller. The controller module will make sure that the right handler will be executed when appropriate.

Each transport can be single session when sending.

All transport must use the zwave_tx_send_data function when sending frames. It is important the the transport handlers use the zwave_tx_parent_session_id parameter in zwave_tx_options_t when sending frames.

When a frame is de-encapsulated it must be forwarded using the zwave_controller_on_frame_received function.

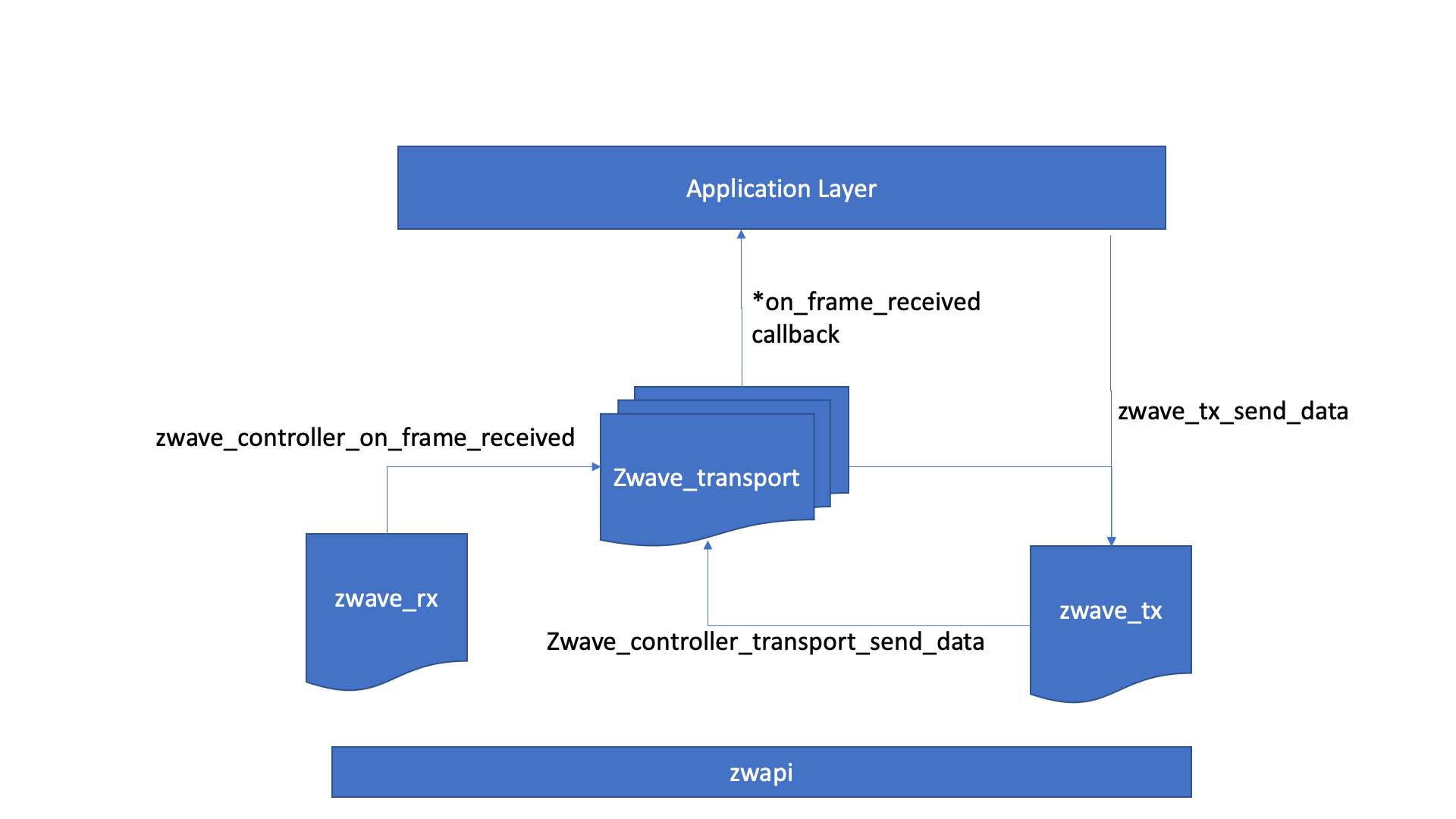

Interactions of the Z-Wave transport framework

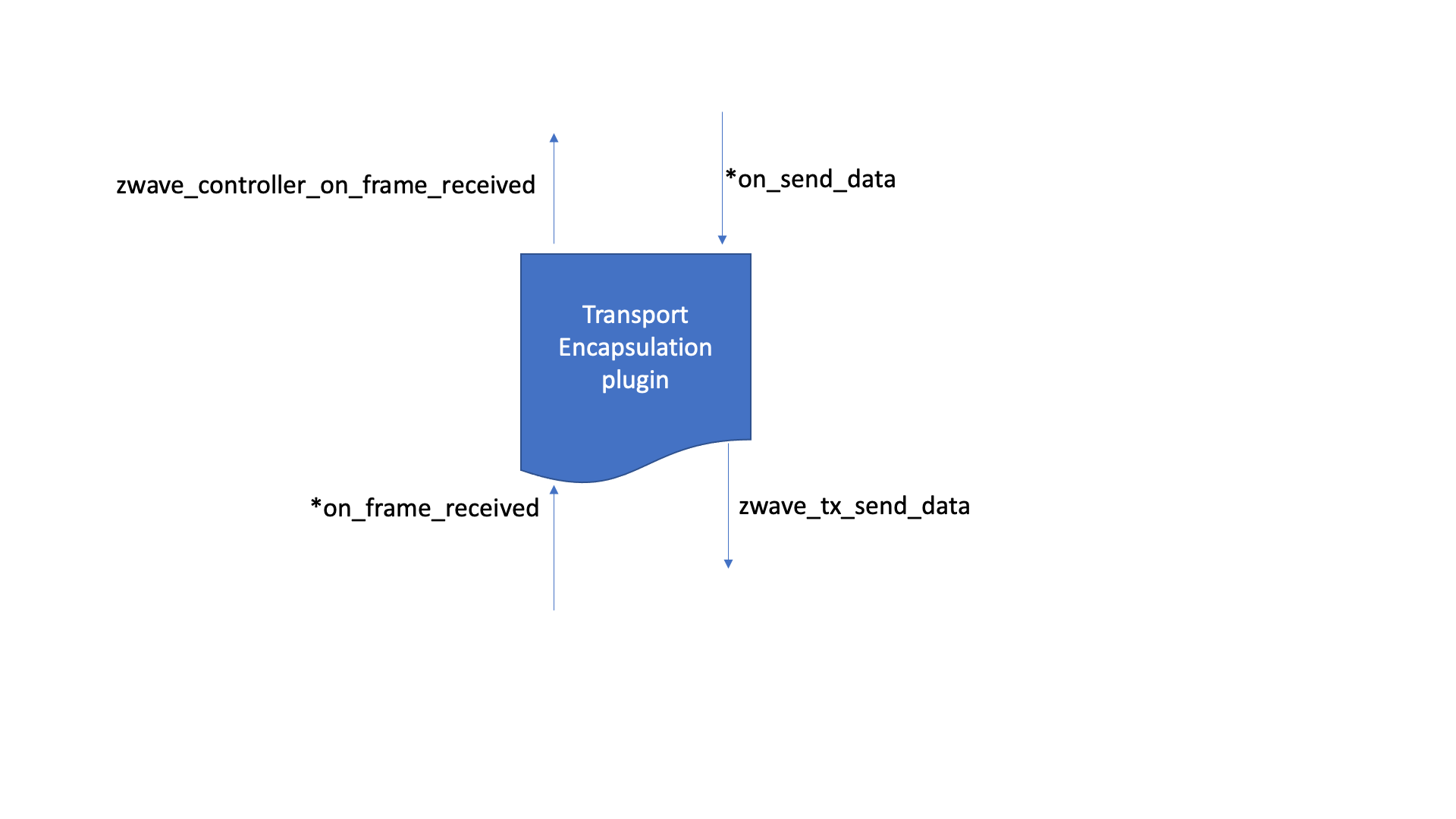

Transport plugin interactions

Macro Definition Documentation

◆ NUMBER_OF_TRANSPORTS

#define NUMBER_OF_TRANSPORTS 7

Typedef Documentation

◆ zwave_controller_transport_t

typedef struct zwave_controller_transport zwave_controller_transport_t

Hold information about a transport plugin.

Function Documentation

◆ zwave_controller_transport_init()

sl_status_t zwave_controller_transport_init ( )

Initialize the Z-Wave Controller transport component.

Returns: sl_status_t

◆ zwave_controller_transport_is_encapsulation_cc()

zwave_cc_version_t zwave_controller_transport_is_encapsulation_cc ( zwave_command_class_t command_class )

check if a command class is registered as an encapsulation cc in Z-Wave controller transport framework. If it does, the module will retrun the version of the encapsulation command class.

Parameters

command_class Z-Wave Command Class

Returns: zero if the command class is not registered as an encapsulation cc in the Z-Wave transport plugin framework.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ zwave_controller_transport_register()

sl_status_t zwave_controller_transport_register ( const zwave_controller_transport_t * transport )

Must be called to register a transport.

There can only be one transport pr command class and only one pr. priority.

Parameters

transport

Returns: sl_status_t

Here is the caller graph for this function:
