Z-Wave RX

Component responsible for initializing the Z-Wave API, listening to incoming frames, and dispatching them. More...

Collaboration diagram for Z-Wave RX:

Modules
	Z-Wave RX callbacks
	Z-Wave RX Event callbacks.
	Z-Wave RX Internals
	Private definitions for the Z-Wave RX Component.
	Z-Wave RX process
	Z-Wave RX process.
	Z-Wave RX Z-Wave API Callbacks
	List of Z-Wave RX callbacks that are registered to the Z-Wave API and used to call Z-Wave RX callbacks ( Z-Wave RX ).
	Z-Wave RX fixture
	Z-Wave RX fixture.

Functions
void	zwave_rx_wait_for_zwave_api_to_be_ready ()

Detailed Description

Component responsible for initializing the Z-Wave API, listening to incoming frames, and dispatching them.

This component is composed of 2 sub-parts:

1. Z-Wave RX fixture : This part is responsible for the Z-Wave API initialization using the ZPC Configuration Extension for parameters.
2. Z-Wave RX process : This component is responsible for continuously polling incoming messages from the Z-Wave module using a contiki process.

In case of received Z-Wave frames, they will be passed on to the Z-Wave Transports component handling de-encapsulation of incoming Z-Wave frames (S0, S2, Transport Service, Multi Channel, CRC16, Multi Command)

For some other events, such as received NIF, SmartStart inclusion or node deleted from the network, the Z-Wave Controller will be notified.

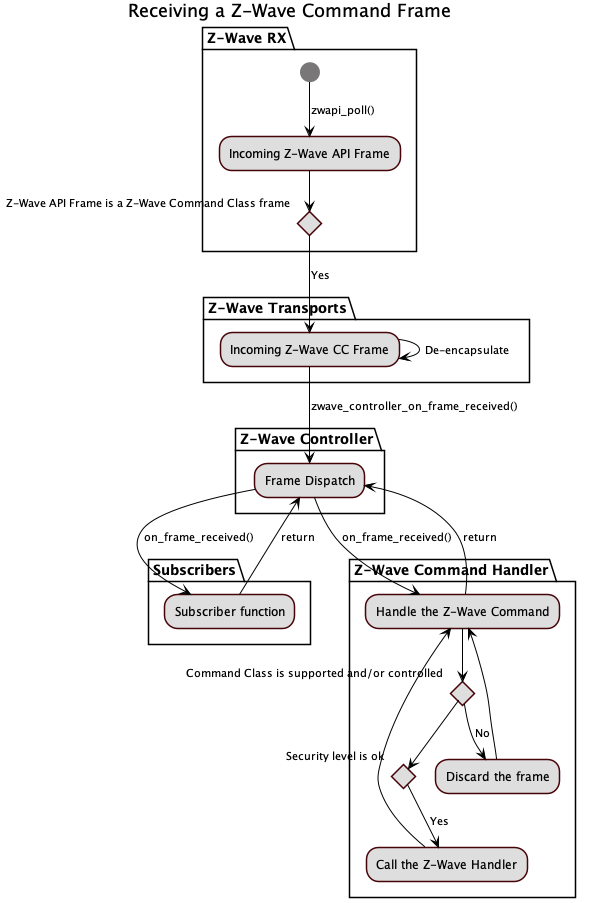

Receiving a frame is illustrated in the picture below:

Receiving a Z-Wave Command

Function Documentation

zwave_rx_wait_for_zwave_api_to_be_ready()

void zwave_rx_wait_for_zwave_api_to_be_ready

(

)

Here is the call graph for this function:

Here is the caller graph for this function:
